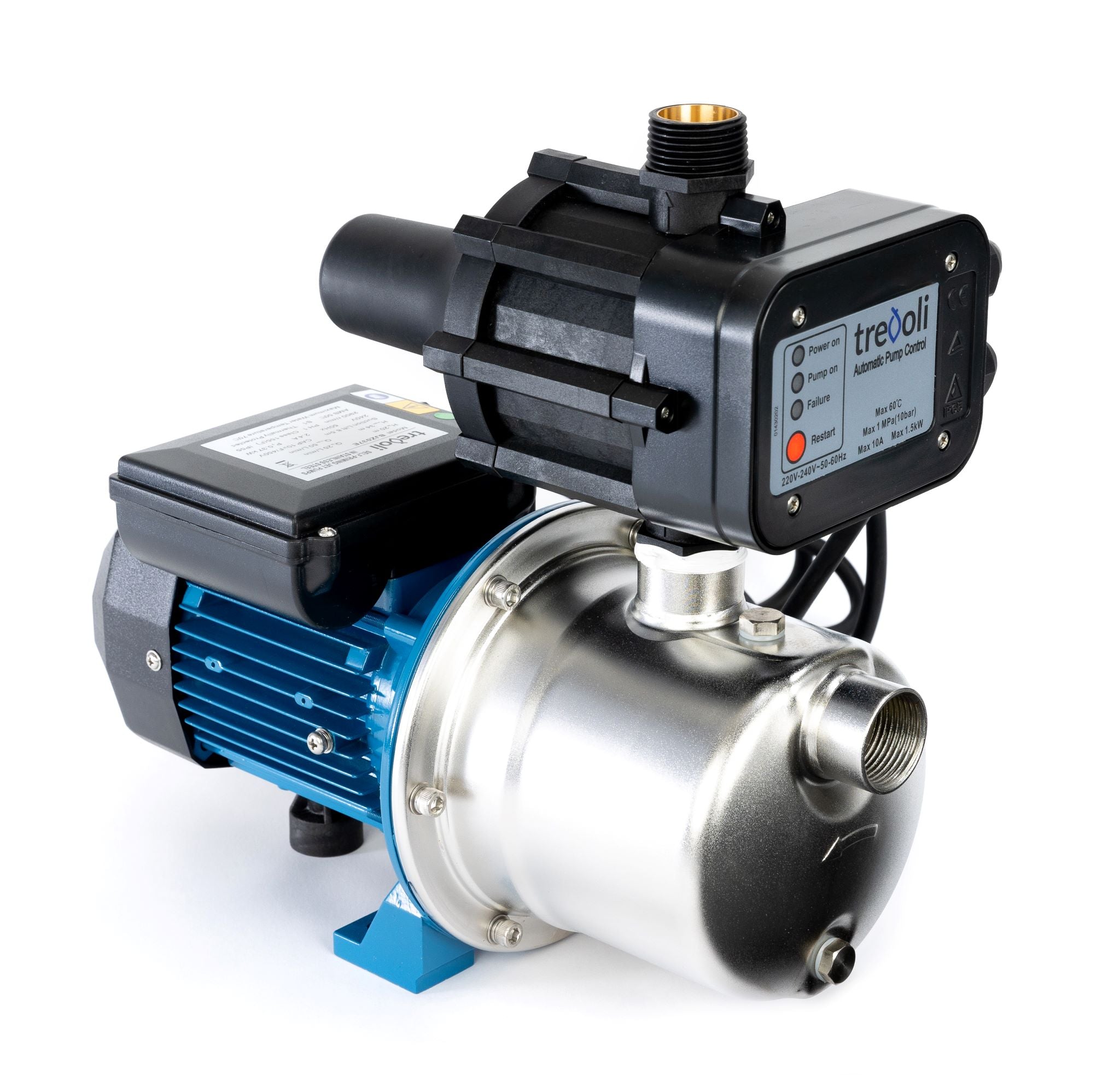

Stainless Steel Jet Pump BJZ037E
Trevoli BJZ037E With DSK Controller: The Ultimate Self-Priming Pump Solution
Reliable Water Supply for Homes and Farms
The Trevoli BJZ037E with DSK Controller represents the gold standard in self-priming water pumps, offering unmatched reliability for residential and agricultural water supply systems. Its innovative jet and venturi design enables an impressive 8m suction lift capability, making it perfect for drawing water from diverse sources including:
Rivers and streams
Farm dams and ponds
Shallow wells
Underground tanks
Technical Specifications and Features

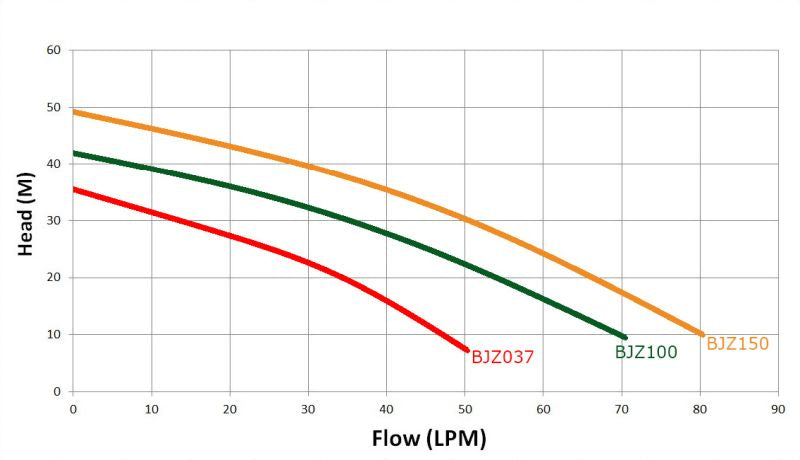

Performance Characteristics
Maximum working pressure: 8 bar
Handles liquid temperatures up to +60°C
0.5 hp (0.3 kW) motor power
25mm inlet/outlet ports
Single-phase operation (220-240V)
Premium Construction Materials
304 stainless steel pump casing, seal plate, and impeller
Carbon/ceramic mechanical seal for extended service life
PPO diffuser/venturi components
EPDM O-rings for chemical resistance
Lightweight aluminium motor housing
Motor Protection System
TEFC (Totally Enclosed Fan Cooled) continuous duty motor
Class B insulation
Internal overload protector
IP55 protection rating
Operates in ambient temperatures up to 50°C
Why Choose the BJZ037E for Your Water System?
This exceptional pump offers numerous advantages for water supply applications:
Easy Priming: The self-priming design eliminates complex startup procedures
High Suction Capability: 8m lift capacity outperforms conventional pumps
Durable Construction: Stainless steel components resist corrosion
Low Maintenance: Quality materials reduce service requirements
Energy Efficient: Optimized design minimizes power consumption
For complete specifications, visit the Trevoli BJZ037E product page.
Ideal Applications
The BJZ037E excels in multiple water supply scenarios:
Farm Water Systems: Perfect for livestock watering and irrigation
Rural Homes: Reliable domestic water supply from alternative sources
Horticulture: Consistent water delivery for gardens and nurseries
Emergency Water: Backup supply during municipal outages
Explore our complete range of multistage water pumps for larger capacity requirements.
Installation and Maintenance Tips
Position the pump as close to the water source as possible
Ensure all suction pipe connections are airtight
Protect from freezing temperatures in winter
Inspect mechanical seals annually
Clean intake screens regularly
The Trevoli BJZ037E with DSK Controller combines robust engineering with practical design, delivering years of trouble-free service for your water supply needs. Its combination of stainless steel construction, powerful suction capability, and energy-efficient operation makes it an outstanding choice for both residential and agricultural applications.
